LAB Setup

Hey below are the LAB Details to setup and meet the real time.

Total RAM Required is 6.2 GB + Base OS as 1 GB












--------------------------------------------------------------------------------------------------------------------------------
The above same posting as Excel work Book also

--------------------------------------------------------------------------------------------------------------------------------



  HYD Site Systems Details for easy config
OS Role RAM System Name IP address Subnet Mask Default Gateway DNS Srv 1 DNS Srv 2
2008 R2 DC 256 MB inhydtcs-dc01 10.0.0.1 255.255.0.0 10.0.0.100 10.0.0.1 172.0.0.1
2008 R2 Exchange 512 MB inhydtcs-ex01 10.0.0.2 255.255.0.0 10.0.0.100 10.0.0.1 172.0.0.1
2008 R2 Central Site 700 MB inhydtcs-cm01 10.0.0.3 255.255.0.0 10.0.0.100 10.0.0.1 172.0.0.1
2008 R2 Central SQL 700 MB inhydtcs-sq01 10.0.0.4 255.255.0.0 10.0.0.100 10.0.0.1 172.0.0.1
2008 R2 Primary Site 1 GB inhydtcs-cm02 10.0.0.5 255.255.0.0 10.0.0.100 10.0.0.1 172.0.0.1
XP Client Xp1 128 MB intcshyd-WS01 10.0.0.6 255.255.0.0 10.0.0.100 10.0.0.1 172.0.0.1
XP Client 2 128 MB intcshyd-WS02 10.0.0.7 255.255.0.0 10.0.0.100 10.0.0.1 172.0.0.1
windows 7 Client 3 512 MB intcshyd-WS03 10.0.0.8 255.255.0.0 10.0.0.100 10.0.0.1 172.0.0.1

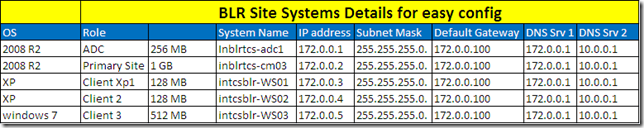

  BLR Site Systems Details for easy config
OS Role   System Name IP address Subnet Mask Default Gateway DNS Srv 1 DNS Srv 2
2008 R2 ADC 256 MB Inblrtcs-adc1 172.0.0.1 255.255.255.0. 172.0.0.100 172.0.0.1 10.0.0.1
2008 R2 Primary Site 1 GB inblrtcs-cm03 172.0.0.2 255.255.255.0. 172.0.0.100 172.0.0.1 10.0.0.1
XP Client Xp1 128 MB intcsblr-WS01 172.0.0.3 255.255.255.0. 172.0.0.100 172.0.0.1 10.0.0.1
XP Client 2 128 MB intcsblr-WS02 172.0.0.4 255.255.255.0. 172.0.0.100 172.0.0.1 10.0.0.1
windows 7 Client 3 512 MB intcsblr-WS03 172.0.0.5 255.255.255.0. 172.0.0.100 172.0.0.1 10.0.0.1

Router Configuration Details - Should have two network cards
OS Role   System Name IP address Subnet Mask Default Gateway DNS Srv 1 DNS Srv 2
Windows 2003 Router 200 MB MHC-Router 10.0.0.100 255.255.0.0 N/A 172.0.0.1 10.0.0.1
        172.0.0.100 255.255.255.0. N/A 172.0.0.1 10.0.0.1
